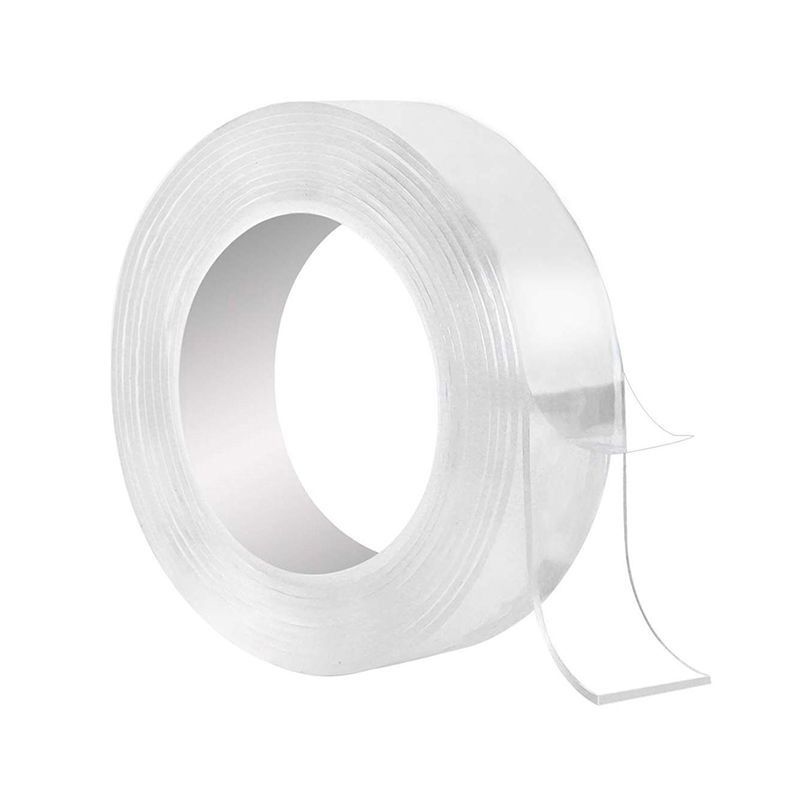

Double Sided Nano Gel Alien Tape

alien tape
double sided acrylic gel tape

Double sided nano gel alien tape, also called gecko tape; marketed under the name Alien Tape, is a synthetic adhesive tape (very high bond acrylic adhesive) consisting of arrays of carbon nanotubes transferred onto a backing material of flexible polymer tape. These arrays are called synthetic setae and mimic the nanostructures found on the toes of a gecko; this is an example of biomimicry. The adhesion is achieved not with chemical adhesives, but via van der Waals forces, which are weak electric forces generated between two atoms or molecules that are very close to each other.

Double sided nano gel alien tape is so strong that it can sometimes be used as an alternative to other fastening options, such as rivets, spot welds and liquid adhesives. For heavy-duty taping tasks, you’ll want to make sure you have alien tape or gel tape available to handle the job.

Double sided gel tape can be applied to:

  •  Mounting illuminated signs
  •  Fabricating road signs
  •  Joining of metals and plastic trims in furniture construction and architectural applications
  •  Automotive aftercare market and crash repair in body shops
  •  Mounting/fixing car side molding and emblems
  •  Graphic art assemblies
  •  Appliance manufacturing
  •  RV skin to frame assembly
  •  Rugged metal to metal bonds
  •  Alternative or replacement for bolts, screws and cementing

For transparent acrylic gel tape, due to its clarity, it can be used to bond glass and other clear
materials.

Common Sizes of double sided nano gel alien tape:

  • 15 mm x 3 m/30 mm x 3 m

Common Packaging of double sided nano gel alien tape:

  • 1 roll/pp bag, and 1 roll/logo printed box
  • 1 roll/shrink with label

Nanogel tape details::

Adhesive acrylic gel
Releasing Liner red/transparent polyethylene film
Tape Color Transparent/White/Black/Grey
Thickness 0.25 MM/0.4 MM/0.5 MM/0.8 MM/1.0 MM/1.2 MM/2.0 MM/3.0 MM etc.
Log Roll Width  800 MM
Finished Roll Length ≤33 M

TDS of nanotechnology magic gel tape (for 1.0 mm):

180O PEEL ADHESION LOOP TACK SHEAR STRENGTH ELONGATION TEMPERATURE
RESISTANCE
20 MIN 72 HOURS 20 MIN 72 HOURS SHORT TERM LONG TERM
g.f/inch g.f/inch g.f/in² kg.f/in2 kg.f/in2 % ℃ ℃
≥ 2,500 ≥ 3,500 ≥2200 ≥ 30 ≥ 40 800 120 80

Shipping Port:

  • Shenzhen Port, China
